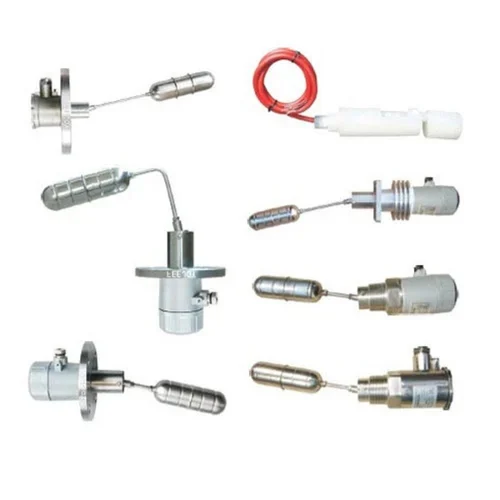

Side mounted magnetic level switches are used for controlling liquid levels in tanks and process vessels. These switches operate on the principle of a float with a built-in magnet. As the liquid level rises or falls, the float moves and actuates a hermetically sealed reed switch inside the housing. This ensures reliable and maintenance-free operation. These switches are highly suitable for process industries where accurate level sensing and long service life are required.

• Type: Side Mounted Magnetic Level Switch
• Mounting Orientation: Side
• Float: SS 304, SS 316, PP, others on request
• Switch Type: Reed Switch, 0.5A, 230 VAC
• Switch Housing: Weatherproof IP–65 / Explosion Proof IIA, IIB, IIC
• Electrical Connection: ¾” ET(F)
• Process Connection: Flanged or Screwed as per requirement
• Specific Gravity: Minimum 0.7, others on request
• Maximum Pressure: Up to 10 Kg/cm² at ambient temperature
• Maximum Temperature: Up to 150 °C
• Applications: Chemical, Petrochemical, Water Treatment, Oil & Gas
