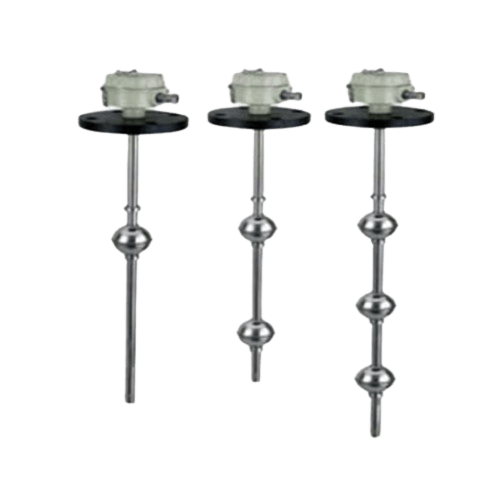

This is top mounted type level switch provided single or multiple set points. It uses float that glides on the surface of liquids. This level switch consists of Terminal Enclosure, Float Stem with Reed Switches and Float with magnets assembled inside. This type of level switch can be used for single or multiple level controls. When level rises, float travels with the liquid on the float stem and when it comes in contact with the reed switches located at a predetermined length of the stem, due to magnetic force reed switch changes its contact. This type of level switch is used for lengths up to 3000 mm. It is recommended to use perforated still well for lengths more than 1500 mm.

• Type: Top Mounted Float Operated Level Switch
• Mounting Orientation: Top
• Float: SS 304, SS 304L, SS 316, SS 316L, PP, others on request
• Flange MOC: CS, SS 304, SS 304L, SS 316, SS 316L, PP, others on request
• Float Stem: SS 304, SS 304L, SS 316, SS 316L
• Switch Type: Reed Switch, 0.5A, 230 VAC
• Switch Housing: Die Cast Aluminium Weatherproof to IP–65 / Explosion Proof Group IIA, IIB, IIC
• Electrical Connection: ¾” ET(F)
• Length below Flange: Up to 3000 mm
• Process Connection: Flanged in various sizes
• Minimum Specific Gravity: 0.8, others on request
• Maximum Pressure: Up to 10 Kg/cm² at ambient temperature, others on request
• Maximum Temperature: Up to 150 °C, others on request
